• Country
• Great Britain (UK)

• Manufacturer / Brand
• Marconi Instruments, Marconi-Ekco (MI, MEI)

• Year
• 1975 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 166061

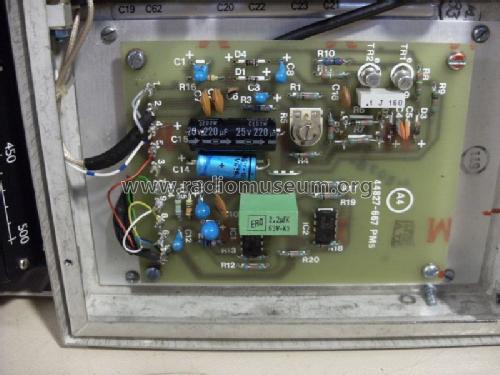

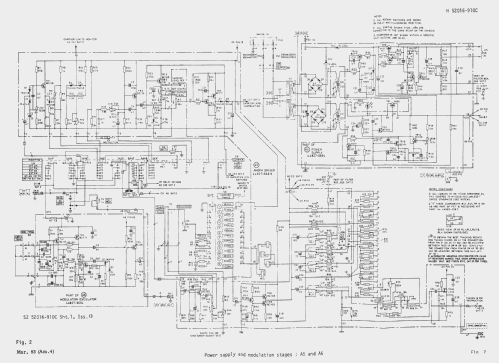

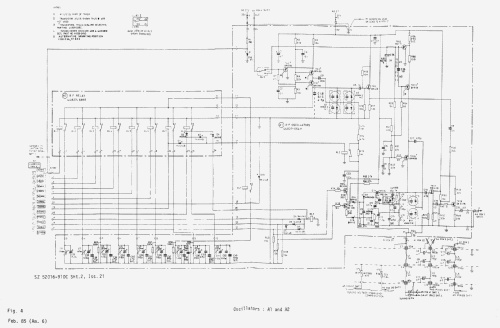

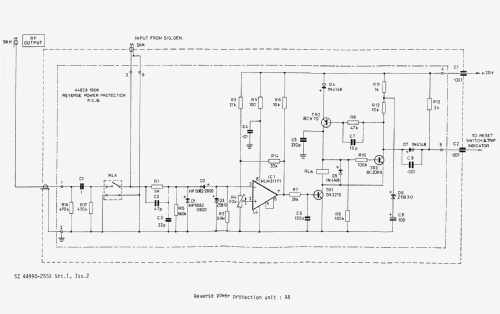

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 95-132; 190-264 / DC 24-32 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: mi Signal Generator AM/FM TF2016A - Marconi Instruments, Marconi-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 290 x 140 x 310 mm / 11.4 x 5.5 x 12.2 inch

• Notes

• Signal generator AM/FM 10KHz-120MHz in 12 bande: 10-22 KHz 22-48 KHz 48-105 KHz 105-230 KHz 230-500 KHz 0.5-1.1 MHz 2.4-5.2 MHz 5.2-11.4 MHz 10-23 MHz 23-53 MHz 53-120 MHz RF output: 0.2 microvolt-2V Attenuatore: 13 step di 10 dB, fine 0-10 continui. Impedenza 50 ohm. Connettore uscita TNC. Protezione in uscita. Modulazione AM e/o FM interna o esterna.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Literature/Schematics (1)
• Manuale d'uso Marconi Instruments cod. 52016-910C

• Author
• Model page created by Enrico Puccini. See "Data change" for further contributors.
