• Country
• United States of America (USA)

• Manufacturer / Brand
• Marconi Wireless Telegraph Co. of America

• Year
• 1912/1913

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 277933

• • alternative name: American Marconi || Marconi, American
  • Brand: Marconiphone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• Fleming_Oscillation

• Main principle
• TRF with diode detector

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

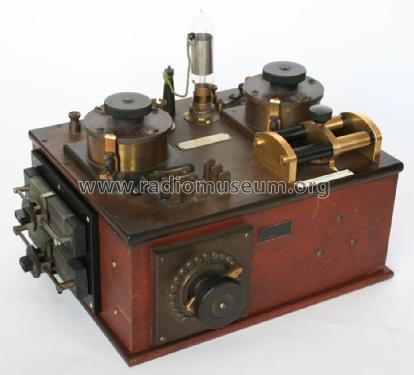

• Model: Fleming Valve Receiver - Marconi Wireless Telegraph Co.

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

• By 1912–1913, Marconi was offering commercial receivers incorporating Fleming valves. A British version known as the Valve Tuner used Fleming oscillation valves as detectors. The receiver employed tuned circuits and required high-resistance headphones. Interestingly, two valves were often fitted, but only one operated at a time while the second served as a spare because valve life was uncertain and replacements were expensive.

• Mentioned in
• -- Original-techn. papers. (February, 1912 Marconi Wireless Telegraph Co. engineering drawing)

• Author
• Model page created by Richard Groshong. See "Data change" for further contributors.
