Induction Coil

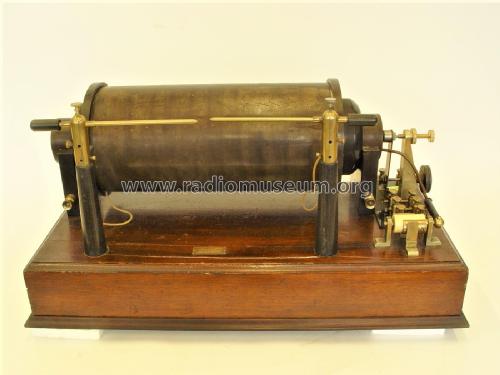

Induction Coil ; Marconi Wireless (ID = 2344283) Morse+TTY Induction Coil ; Marconi Wireless (ID = 2344282) Morse+TTY

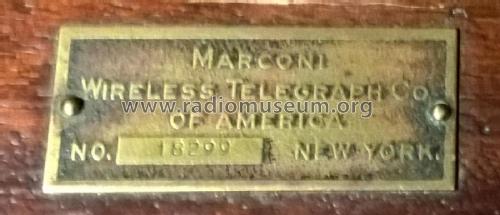

Induction Coil ; Marconi Wireless (ID = 2344284) Morse+TTY Induction Coil ; Marconi Wireless (ID = 2344357) Morse+TTY
Use red slider bar for more.
Induction Coil ; Marconi Wireless (ID = 2344283) Morse+TTY
Marconi Wireless: Induction Coil [Morse+TTY] ID = 2344283 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Induction Coil, Marconi Wireless Telegraph Co. of America:
US_Marconi Wireless Telegraph_bobine de Rhumkorff_vue côté droit_coll. privée (réf:1894).

Country:  United States of America (USA)
Manufacturer / Brand:  Marconi Wireless Telegraph Co. of America
alternative name

American Marconi || Marconi, American
Brand
Marconiphone
Year: 1910 ?? Category: Morse-Equipment & TTY, RTTY, TDD etc.
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios)
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Induction Coil - Marconi Wireless Telegraph Co.
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 630 x 330 x 310 mm / 24.8 x 13 x 12.2 inch
Notes

Marconi Induction Coil, with ebonite-case coil, platinum make-and-break and discharge rods and mahogany plinth. The standard coils are wound to take from 16 to 24 volts (continuous current) in the primary circuit.

Net weight (2.2 lb = 1 kg) 31.3 kg / 68 lb 15.1 oz (68.943 lb)

Model page created by Museum Musée des Radios. See "Data change" for further contributors.
