Quaker Oats Radio Receiving Set

Quaker Oats Radio Receiving Set ; Marquette Radio Corp (ID = 2253416) Crystal Quaker Oats Radio Receiving Set ; Marquette Radio Corp (ID = 2253417) Crystal
Quaker Oats Radio Receiving Set ; Marquette Radio Corp (ID = 2253418) Crystal Quaker Oats Radio Receiving Set ; Marquette Radio Corp (ID = 2253419) Crystal
Quaker Oats Radio Receiving Set ; Marquette Radio Corp (ID = 2253420) Crystal Quaker Oats Radio Receiving Set ; Marquette Radio Corp (ID = 2253421) Crystal
Quaker Oats Radio Receiving Set ; Marquette Radio Corp (ID = 2253422) Crystal Quaker Oats Radio Receiving Set ; Marquette Radio Corp (ID = 2253423) Crystal
Quaker Oats Radio Receiving Set ; Marquette Radio Corp (ID = 2356636) Crystal
Use red slider bar for more.
Quaker Oats Radio Receiving Set ; Marquette Radio Corp (ID = 2253416) Crystal
Marquette Radio Corp: Quaker Oats Radio Receiving Set [Crystal] ID = 2253416 1051x1885
Select picture or schematic to display from thumbnails on the right and click for download.
For model Quaker Oats Radio Receiving Set, Marquette Radio Corp.; Chicago, Ill

Country:  United States of America (USA)
Manufacturer / Brand:  Marquette Radio Corp.; Chicago, Ill
Year: 1921–1923 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Quaker Oats Radio Receiving Set - Marquette Radio Corp.; Chicago
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 4.125 x 8 x 4.125 inch / 105 x 203 x 105 mm
Notes

The Quaker Oats Company offered this crystal radio as a premium from 1921 to 1923 at the cost of $1.00 and two Quaker Oats trademarks cut from Quaker Oats packages, or a complete setup including an Aerial Kit and a pair of Trimm 'Dependable' headphones could be had for $5.00 and two Quaker Oats trademarks.

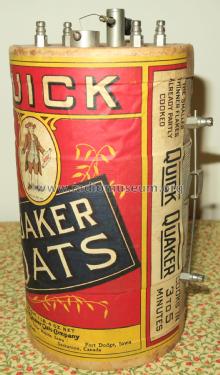

The radio was manufactured by Marquette Radio Corporation for Quaker Oats using a standard Quaker Oats container. At that time, identical containers with this identical label were used to package Quaker Oats. They wound a coil of wire about 80 times around the container and then covered it with the thin paper label.  Tuning is by means of a slider contacting the coil in an area along the side of the radio not covered by the label.

See similar model Mother's Crushed Oats Crystal Set.

Mentioned in Crystal Clear Volume 2

Model page created by Greg Farmer. See "Data change" for further contributors.
