- Country
- France
- Manufacturer / Brand
- Martin, V.; Paris, Courbevoie
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 282717
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 143 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 250 Volt

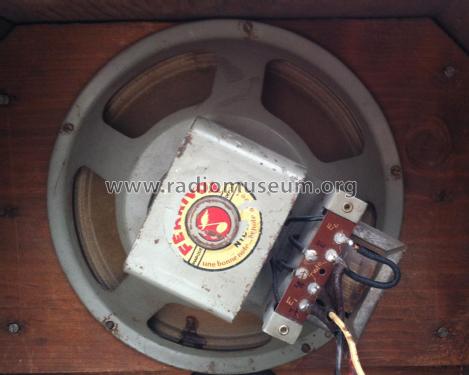

- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 25 cm = 9.8 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 520 - Martin, V.; Paris, Courbevoie
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 375 x 490 x 270 mm / 14.8 x 19.3 x 10.6 inch
- Notes
-
Antifading.
- Net weight (2.2 lb = 1 kg)
- 15 kg / 33 lb 0.6 oz (33.04 lb)
- Price in first year of sale
- 1,950.00 FRF
- Mentioned in
- -- Original prospect or advert (L'Antenne No 557, 26.11.1933)
- Author
- Model page created by Harald Giese. See "Data change" for further contributors.
