• Country
• France

• Manufacturer / Brand
• Martin, V.; Paris, Courbevoie

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 287337

• Number of Tubes
• 5

• Valves / Tubes

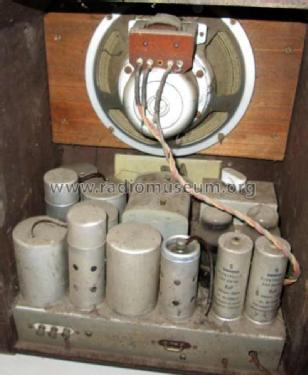

• 57 58 2B7 2A5 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 55 - Martin, V.; Paris, Courbevoie

• Shape

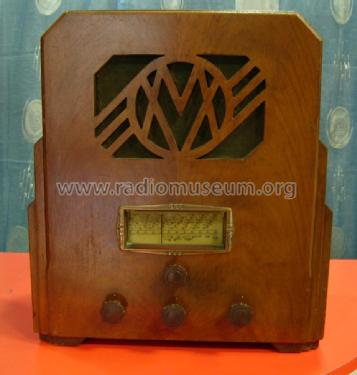

• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 380 x 430 x 260 mm / 15 x 16.9 x 10.2 inch

• Notes

• Antifading.

• Price in first year of sale
• 1,150.00 FRF

• Mentioned in
• -- Original prospect or advert (L'Antenne No 607, 11.11.1934)

• Other Models

• Here you find 36 models, 32 with images and 8 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
