• Year
  • 1934/1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 287350

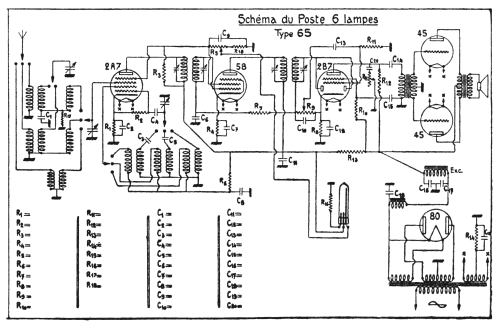

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 135 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Visual Tuning Indicator pre Eye
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 230; 250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 65 - Martin, V.; Paris, Courbevoie
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • 3 gammes d'ondes : OC de 20 à 60 m, PO de 195 à 570 m, et GO de 750 à 2000 m. Sélectivité 9 Kc/s. Accord silencieux par tube au néon (tunoscope). Antifading. Montage en push-pull.

  • Price in first year of sale
  • 2,180.00 FRF
  • Mentioned in
  • -- Original prospect or advert (L'Antenne No 607, 11.11.1934)
