Populaire 59B tous courants

Martin, V.; Paris, Courbevoie

Data
Forum
Pictures
Collections

  • Year
  • 1936 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 282031

 Technical Specifications

  • Number of Tubes
  • 5
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet. / Ø 21 cm = 8.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

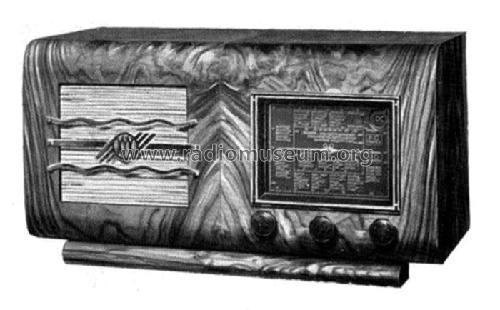

  • Model: Populaire 59B [tous courants] - Martin, V.; Paris, Courbevoie
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 520 x 270 x 270 mm / 20.5 x 10.6 x 10.6 inch
  • Notes

  • 3 gammes d'ondes de 20 à 2000 m. Sélectivité 9 Kcs.

    Alimentation tous courants.

    Ébénisterie noyer verni au tampon, décor cuivre rouge.



  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
  • Price in first year of sale
  • 1,290.00 FRF
  • Mentioned in
  • -- Original prospect or advert
