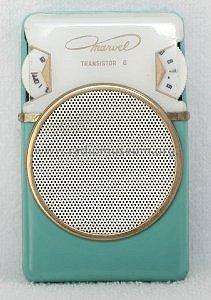

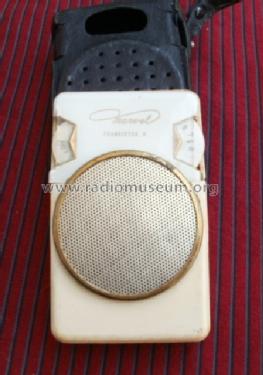

Transistor 6 6YR-15A

Transistor 6 6YR-15A; Marvel brand name, (ID = 2293633) Radio Transistor 6 6YR-15A; Marvel brand name, (ID = 2115593) Radio
Transistor 6 6YR-15A; Marvel brand name, (ID = 264086) Radio Transistor 6 6YR-15A; Marvel brand name, (ID = 416991) Radio
Transistor 6 6YR-15A; Marvel brand name, (ID = 416992) Radio Transistor 6 6YR-15A; Marvel brand name, (ID = 416993) Radio
Transistor 6 6YR-15A; Marvel brand name, (ID = 416994) Radio Transistor 6 6YR-15A; Marvel brand name, (ID = 417124) Radio
Transistor 6 6YR-15A; Marvel brand name, (ID = 417126) Radio Transistor 6 6YR-15A; Marvel brand name, (ID = 764425) Radio
Use red slider bar for more.
Transistor 6 6YR-15A; Marvel brand name, (ID = 2293633) Radio
Marvel brand name,: Transistor 6 6YR-15A [Radio] ID = 2293633 1083x1605
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor 6 6YR-15A, Marvel (brand name), Japan

Country:  Japan
Manufacturer / Brand:  Marvel (brand name), Japan
Year: 1960 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Transistor 6 6YR-15A - Marvel brand name, Japan
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 58 x 90 x 27 mm / 2.3 x 3.5 x 1.1 inch
Notes

Marvel Pocket AM Radio Model Transistor 6 6YR-15A.
Made in Japan by Yokohama Tsoshin Kogyo Co., Ltd.

Similar to the models listed under Mellow Tone

Mentioned in -- Collector info (Sammler)

Model page created by Peter Hoddow. See "Data change" for further contributors.
