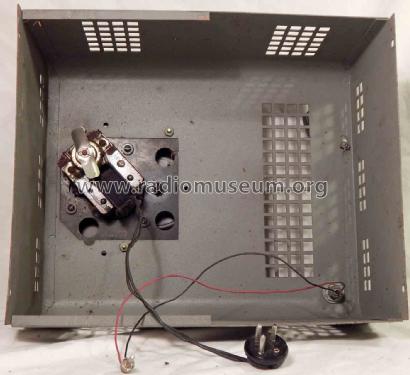

MA-17P ; Masco Mark Simpson (ID = 1823132) Ampl/Mixer MA-17P ; Masco Mark Simpson (ID = 1823133) Ampl/Mixer
MA-17P ; Masco Mark Simpson (ID = 1823134) Ampl/Mixer MA-17P ; Masco Mark Simpson (ID = 1823129) Ampl/Mixer
MA-17P ; Masco Mark Simpson (ID = 1565748) Ampl/Mixer MA-17P ; Masco Mark Simpson (ID = 1565749) Ampl/Mixer

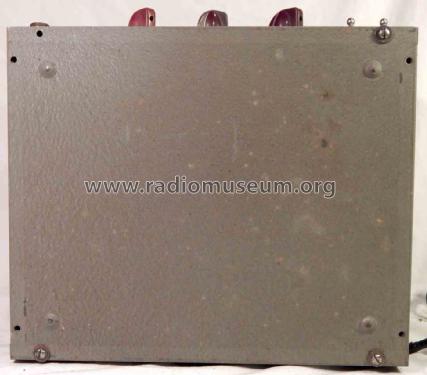

MA-17P ; Masco Mark Simpson (ID = 1565751) Ampl/Mixer MA-17P ; Masco Mark Simpson (ID = 1823135) Ampl/Mixer
Use red slider bar for more.
MA-17P ; Masco Mark Simpson (ID = 1823128) Ampl/Mixer
Masco Mark Simpson: MA-17P [Ampl/Mixer] ID = 1823128 1400x1210
Select picture or schematic to display from thumbnails on the right and click for download.
For model MA-17P, Masco Mark Simpson Company Inc., Long Island:
Auf dem Verstärker ist ein Gehäuse mit eingebautem Plattenspieler.

Country:  United States of America (USA)
Manufacturer / Brand:  Masco Mark Simpson Company Inc., Long Island
Year: 1946/1947 Category: Audio Amplifier or -mixer
Valves / Tubes 5: 7C7 6SL7 6L6GA 6L6GA 5Y3G
Main principle Audio-Amplification
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 115 (110-120) Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: MA-17P - Masco Mark Simpson Company Inc
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 12 x 10.25 x 10 inch / 305 x 260 x 254 mm
Notes

The Masco Model MA-17P is an AC Operated 5-Tube Amplifier with a Phonograph on top. Same schematic as model MA-17.

Net weight (2.2 lb = 1 kg) 23 lb (23 lb 0 oz) / 10.442 kg
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date: Feb 1947, Set 14, Folder 474-32)
