• Year
  • 1955 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 257835

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Dry Batteries / 6 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Various materials
  • from Radiomuseum.org

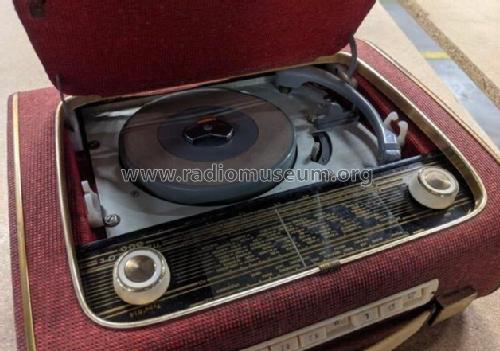

  • Model: Duo 614 - Mascot Electronic A/S;
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 315 x 255 x 130 mm / 12.4 x 10 x 5.1 inch
  • External source of data
  • Data courtesy of guest Nats Teige
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
