APO Multimeter No. 3

APO Multimeter No. 3 ; Master Instruments (ID = 1296277) Equipment
APO Multimeter No. 3 ; Master Instruments (ID = 1296254) Equipment APO Multimeter No. 3 ; Master Instruments (ID = 1292147) Equipment
APO Multimeter No. 3 ; Master Instruments (ID = 1292148) Equipment APO Multimeter No. 3 ; Master Instruments (ID = 1292149) Equipment
APO Multimeter No. 3 ; Master Instruments (ID = 1292150) Equipment APO Multimeter No. 3 ; Master Instruments (ID = 1296278) Equipment
APO Multimeter No. 3 ; Master Instruments (ID = 1296281) Equipment APO Multimeter No. 3 ; Master Instruments (ID = 1296283) Equipment
APO Multimeter No. 3 ; Master Instruments (ID = 1296284) Equipment APO Multimeter No. 3 ; Master Instruments (ID = 1296288) Equipment
Use red slider bar for more.
APO Multimeter No. 3 ; Master Instruments (ID = 1296254) Equipment
Master Instruments: APO Multimeter No. 3 [Equipment] ID = 1296254 807x858
Select picture or schematic to display from thumbnails on the right and click for download.
For model APO Multimeter No. 3, Master Instruments Pty. Ltd., Sydney

Country:  Australia
Manufacturer / Brand:  Master Instruments Pty. Ltd., Sydney
Year: 1968 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: APO Multimeter No. 3 - Master Instruments Pty. Ltd.,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)

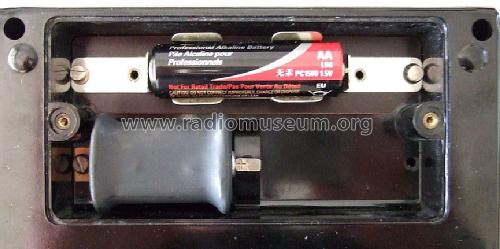

Notes This is a rugged instrument designed for general purpose field use by telecommunications technicians in the Australian Post Office and military services. The meter has a basic internal resistance on voltage ranges of 1000 Ohms/V and the stated accuracy is better than 1.5% on DC voltage and 2% on AC voltage. A single range switch covers AC and DC voltages to 1000V and AC current from 1mA to 10A. The front panel includes a separate probe socket to allow measuring the internal resistance of single 1.5V cells which were used as local battery microphone supplies on magneto telephone services in country regions and miltary field telephones. The internal batteries consist of a single AA 1.5v cell for Ohms x1, x10 and x100 ranges and a 15V battery (Eveready 411) for the Ohms x1000 range. The moving coil movement has a sensitivity of 400uA fsd and is rubber mounted to withstand shock in excess of 40G @ 120 vibrations/minute while at the same time being shielded against external magnetic fields in excess of 50 Oersteds.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Price in first year of sale 69.00 AUD
Collectors' prices
Source of data - - Manufacturers Literature
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Ross Herbert. See "Data change" for further contributors.
