D525

D525; Masteradio, London (ID = 776190) Radio
D525; Masteradio, London (ID = 1133154) Radio D525; Masteradio, London (ID = 1133155) Radio
D525; Masteradio, London (ID = 1133156) Radio
Use red slider bar for more.
D525; Masteradio, London (ID = 1133154) Radio
Masteradio, London: D525 [Radio] ID = 1133154 933x507
Select picture or schematic to display from thumbnails on the right and click for download.
For model D525, Masteradio, London

Country:  Great Britain (UK)
Manufacturer / Brand:  Masteradio, London
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF115 AF117 AF117 AC127 OC81D OC81 AC127
Main principle Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.12 inch = 10.5 cm
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: D525 - Masteradio, London
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 224 x 125 x 52 mm / 8.8 x 4.9 x 2 inch
Notes

Portable radio with "Luxembourg" and "Caroline" bandspread. Fitted with sockets for car aerial, & earphone. SW band 5.7-10.3 Mhz. Battery type PP6.

Also marketed as the model types GEC G825 and Sobell S325.

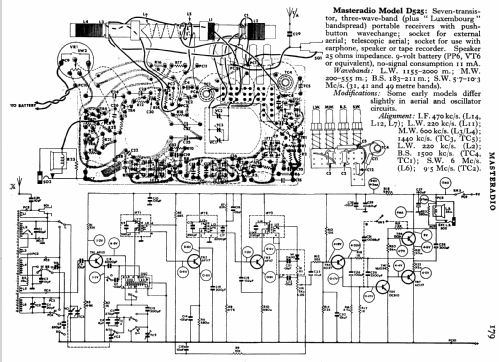

Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Literature/Schematics (1) ERT Chart 1515

Model page created by Keith Staines. See "Data change" for further contributors.
