National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Year
1979–1981

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
227247

Schematics

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1346369) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1346370) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1346371) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1346372) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1346373) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1346374) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1346375) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1688879) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1688880) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1688881) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1688882) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

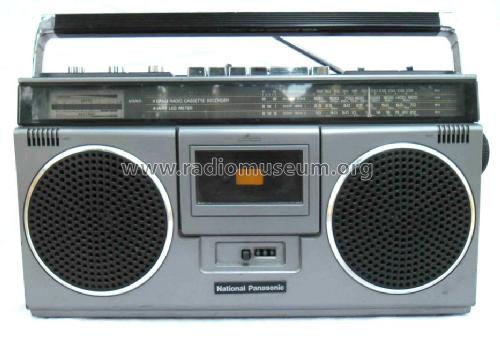

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1688883) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1688884) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1688885) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD; Panasonic, (ID = 1688886) Radio — Panasonic, National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD (2)

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common)

Wave bands
Broadcast, 2 Short Wave plus FM or UHF.

Details
Cassette-Recorder or -Player

Power type and voltage
Line / Batteries (any type) / 90-250 / 6 x 1.5 Volt

Loudspeaker
2 Loudspeakers

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: National Panasonic 4-Band Radio Cassette Recorder RQ-4050FD - Panasonic, Matsushita,

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
410 x 230 x 110 mm / 16.1 x 9.1 x 4.3 inch

Notes
4-way LED meter, one touch record, tone control, mic-mixing, Cr02/normal, tape counter, pause, cue and review, super Permalloy head, 3-way power.

Frequency ranges:
FM: 87.5 - 108 MHz
MW: 525 - 1605 kHz
SW1: 2.3 - 7 MHz
SW2: 7.0 - 22 MHz

Mains ranges: 90 - 100, 110 - 125, 200 - 219, 220 - 250 V. Power consumption 14 W.

Price in first year of sale
249.00 AUS $

Mentioned in
Mingay's Price Service (Aug 1979 to Feb 1981.)

Author
Model page created by a member from A. See "Data change" for further contributors.
