National Super-Het CE-435

National Super-Het CE-435; Panasonic, (ID = 831988) Radio National Super-Het CE-435; Panasonic, (ID = 821273) Radio
National Super-Het CE-435; Panasonic, (ID = 821272) Radio National Super-Het CE-435; Panasonic, (ID = 821271) Radio
National Super-Het CE-435; Panasonic, (ID = 821274) Radio National Super-Het CE-435; Panasonic, (ID = 2266047) Radio
Use red slider bar for more.

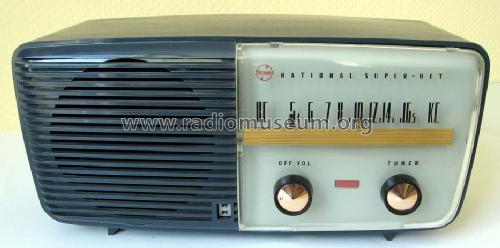

National Super-Het CE-435; Panasonic, (ID = 831988) Radio
Panasonic,: National Super-Het CE-435 [Radio] ID = 831988 933x464
Select picture or schematic to display from thumbnails on the right and click for download.
For model National Super-Het CE-435, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 225 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: National Super-Het CE-435 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 310 x 145 x 130 mm / 12.2 x 5.7 x 5.1 inch

Model page created by Jos van den Broek. See "Data change" for further contributors.
