National Panasonic FM-AM 3-Band 9-Transistor RF-680LV

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

  • Year
  • 1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 238473

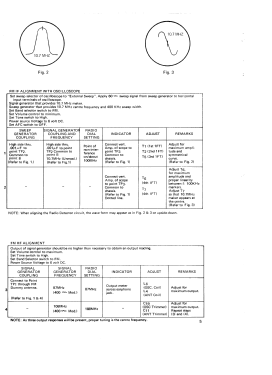

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Dry Batteries / AA: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: National Panasonic FM-AM 3-Band 9-Transistor RF-680LV - Panasonic, Matsushita,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 180 x 105 x 45 mm / 7.1 x 4.1 x 1.8 inch
  • Notes
  • Frequency ranges:
    FM 65 - 74 MHz
    MW: 520 - 1610 kHz
    LW: 150 - 300 kHz

  • Net weight (2.2 lb = 1 kg)
  • 0.550 kg / 1 lb 3.4 oz (1.211 lb)
  • Author
  • Model page created by Rudolf Nemeth. See "Data change" for further contributors.
