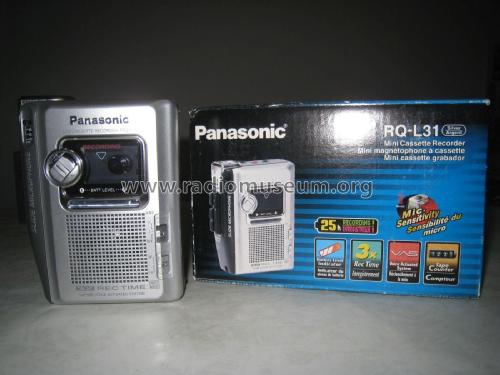

Panasonic Mini Cassette Recorder RQ-L31

Panasonic Mini Cassette Recorder RQ-L31; Panasonic, (ID = 1467171) R-Player Panasonic Mini Cassette Recorder RQ-L31; Panasonic, (ID = 1467172) R-Player
Panasonic Mini Cassette Recorder RQ-L31; Panasonic, (ID = 1467173) R-Player Panasonic Mini Cassette Recorder RQ-L31; Panasonic, (ID = 2012563) R-Player
Panasonic Mini Cassette Recorder RQ-L31; Panasonic, (ID = 2012564) R-Player Panasonic Mini Cassette Recorder RQ-L31; Panasonic, (ID = 2012565) R-Player
Panasonic Mini Cassette Recorder RQ-L31; Panasonic, (ID = 2012566) R-Player Panasonic Mini Cassette Recorder RQ-L31; Panasonic, (ID = 2565824) R-Player
Use red slider bar for more.
Panasonic Mini Cassette Recorder RQ-L31; Panasonic, (ID = 1467171) R-Player
Panasonic,: Panasonic Mini Cassette Recorder RQ-L31 [R-Player] ID = 1467171 668x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model Panasonic Mini Cassette Recorder RQ-L31, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 2000 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Batteries / addl. power jack / 2 x 1,5 / 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.6 cm = 1.4 inch
Power out 0.45 W (undistorted)
from Radiomuseum.org Model: Panasonic Mini Cassette Recorder RQ-L31 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 86 x 112 x 37 mm / 3.4 x 4.4 x 1.5 inch
Notes

2-track monaural. Two speeds 4.8 and 1.6 cm/s. Frequency response: 180 - 7000 Hz playback,  250 - 6300 Hz rec/playback.

Optional AC adaptor RP-AC30.

Made in Taiwan.

Net weight (2.2 lb = 1 kg) 0.157 kg / 0 lb 5.5 oz (0.346 lb)
Mentioned in -- Original prospect or advert

Model page created by Danko Tkalec. See "Data change" for further contributors.



All listed radios etc. from Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Here you find 2625 models, 2385 with images and 507 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
