National 2-Band 7-Transistor T-45

National 2-Band 7-Transistor T-45; Panasonic, (ID = 1684546) Radio

National 2-Band 7-Transistor T-45; Panasonic, (ID = 1725703) Radio

National 2-Band 7-Transistor T-45; Panasonic, (ID = 1725704) Radio
National 2-Band 7-Transistor T-45; Panasonic, (ID = 843451) Radio National 2-Band 7-Transistor T-45; Panasonic, (ID = 843452) Radio
National 2-Band 7-Transistor T-45; Panasonic, (ID = 843453) Radio National 2-Band 7-Transistor T-45; Panasonic, (ID = 843454) Radio
National 2-Band 7-Transistor T-45; Panasonic, (ID = 843456) Radio National 2-Band 7-Transistor T-45; Panasonic, (ID = 1077350) Radio
National 2-Band 7-Transistor T-45; Panasonic, (ID = 1077351) Radio National 2-Band 7-Transistor T-45; Panasonic, (ID = 1077352) Radio
National 2-Band 7-Transistor T-45; Panasonic, (ID = 1077354) Radio National 2-Band 7-Transistor T-45; Panasonic, (ID = 1077355) Radio
Use red slider bar for more.

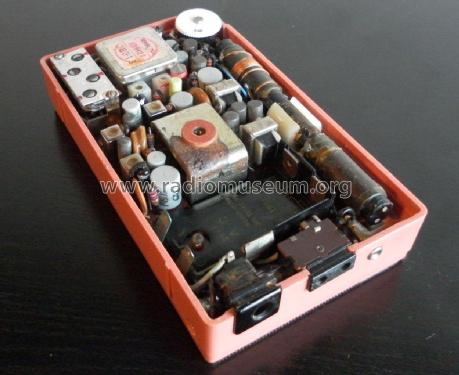

National 2-Band 7-Transistor T-45; Panasonic, (ID = 843451) Radio
Panasonic,: National 2-Band 7-Transistor T-45 [Radio] ID = 843451 933x538
Select picture or schematic to display from thumbnails on the right and click for download.
For model National 2-Band 7-Transistor T-45, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SA103 2SA103 2SA103 2SB171 2SB171 2SB172 2SB172 OA70 OA70 MA23
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / AA: 2 x 1,5 / 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.085 W (0.15 W max.)
from Radiomuseum.org Model: National 2-Band 7-Transistor T-45 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 135 x 80 x 35 mm / 5.3 x 3.1 x 1.4 inch
Notes

Frequency ranges:
MW: 540 - 1600 Kc
SW: 3.9 - 12.0 Mc

External antenna terminal, Two earphone and external speaker jacks.

Similar shape to EPEO EP721

Net weight (2.2 lb = 1 kg) 0.350 kg / 0 lb 12.3 oz (0.771 lb)
Source of data -- Schematic

Model page created by José Manuel Silvestre. See "Data change" for further contributors.
