National UW-115

National UW-115; Panasonic, (ID = 1280352) Radio
National UW-115; Panasonic, (ID = 1552840) Radio National UW-115; Panasonic, (ID = 1552841) Radio
National UW-115; Panasonic, (ID = 1552842) Radio National UW-115; Panasonic, (ID = 1552843) Radio
National UW-115; Panasonic, (ID = 1552844) Radio National UW-115; Panasonic, (ID = 1552845) Radio
National UW-115; Panasonic, (ID = 1552846) Radio National UW-115; Panasonic, (ID = 1552849) Radio
Use red slider bar for more.
National UW-115; Panasonic, (ID = 1552840) Radio
Panasonic,: National UW-115 [Radio] ID = 1552840 933x763
Select picture or schematic to display from thumbnails on the right and click for download.
For model National UW-115, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DF96 DK96 DF96 DAF96 DL97 or 3Y4
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Line / Batteries (any type) / AC/DC 100; 110 / 1.5 & 67.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: National UW-115 - Panasonic, Matsushita,
Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 220 x 145 x 62 mm / 8.7 x 5.7 x 2.4 inch

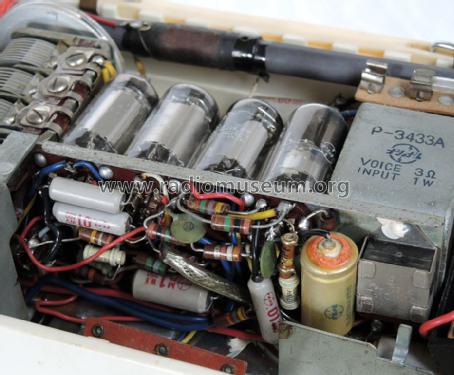

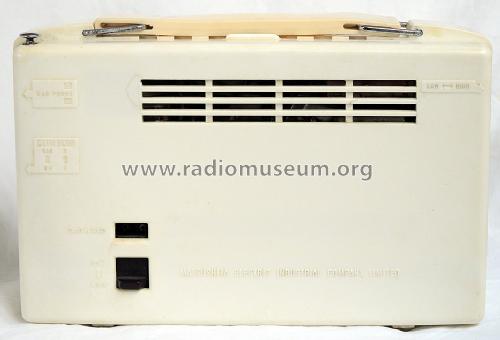

Notes National UW-115 is a 5-Tube AC-DC Battery Operated Radio Receiver.
Ferrite rod and telescopic antenna.
Manufactured by Matsushita Electric Industrial Co. Ltd., Japan.
Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
Source of data -- Schematic

Model page created by Bernhard Nagel. See "Data change" for further contributors.
