RE-710

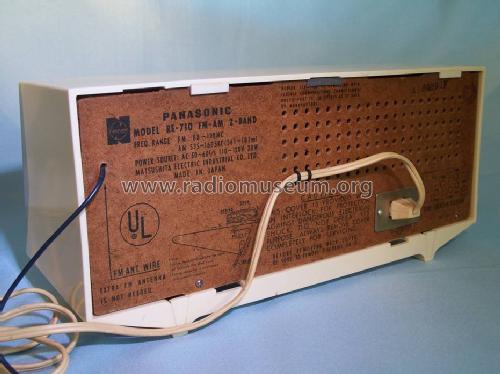

RE-710; Panasonic, (ID = 1052149) Radio RE-710; Panasonic, (ID = 1052150) Radio
Use red slider bar for more.
RE-710; Panasonic, (ID = 1052149) Radio
Panasonic,: RE-710 [Radio] ID = 1052149 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model RE-710, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 17EW8 12BE6 12BA6 12AV6 12AL5 50C5
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: RE-710 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 13 x 6 x 5 inch / 330 x 152 x 127 mm
Notes

Frequency ranges:
FM: 88 - 108 Mc
AM: 535 - 1605 Kc

Model page created by Flavio Chavez. See "Data change" for further contributors.
