• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 120091

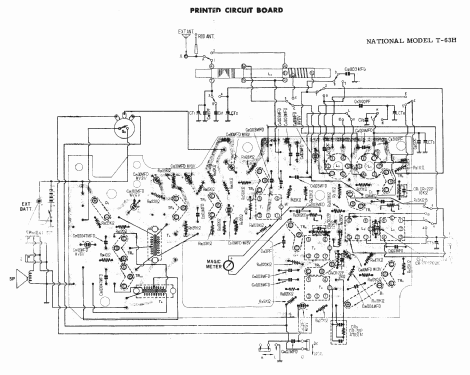

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• 2SA103 2SA103 2SA103 2SA101 2SA101 2SB171 2SB171 2SB171 2SB176 2SB176 OA70 MA23

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Batteries / addl. power jack / C: 4 x 1,5 / DC 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 0.15 W (0.25 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

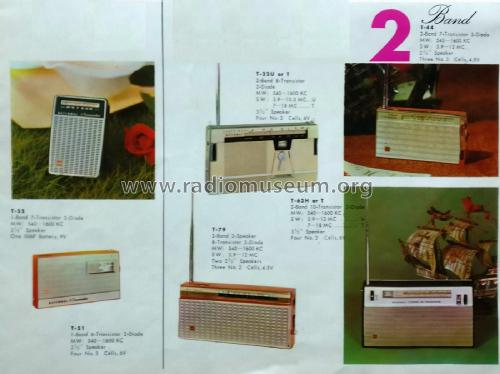

• Model: National 2-Band 10-Transistor T-63 H - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Frequency range (MW) 540-1600 kHz and (SW) 3.9-12 MHz.

  Magic Meter, L/H Tone switch, External antenna terminal, two earphone or external speaker jacks.

  See also T-63 T with different SW band reception.

• Mentioned in
• -- Schematic

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
