National TR-525ES

National TR-525ES; Panasonic, (ID = 104556) Television National TR-525ES; Panasonic, (ID = 104558) Television
National TR-525ES; Panasonic, (ID = 445443) Television National TR-525ES; Panasonic, (ID = 445444) Television
National TR-525ES; Panasonic, (ID = 445445) Television National TR-525ES; Panasonic, (ID = 672766) Television
National TR-525ES; Panasonic, (ID = 672768) Television National TR-525ES; Panasonic, (ID = 904660) Television
National TR-525ES; Panasonic, (ID = 1129454) Television National TR-525ES; Panasonic, (ID = 1129455) Television
Use red slider bar for more.
National TR-525ES; Panasonic, (ID = 104556) Television
Panasonic,: National TR-525ES [Television] ID = 104556 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model National TR-525ES, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1977–1979 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) 26:
schematic requested
Main principle Superheterodyne (common); ZF/IF 38900/33400 kHz; 3 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details

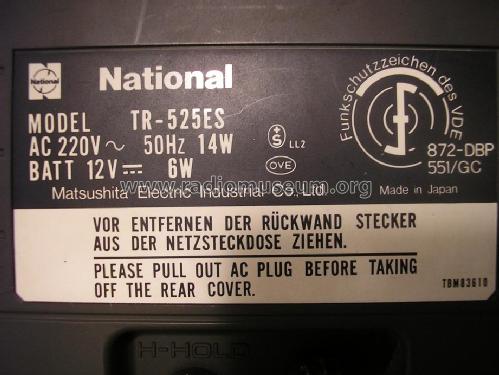

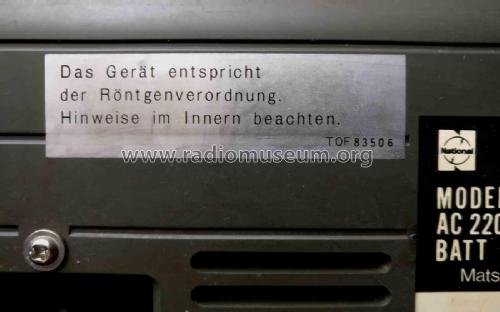

Power type and voltage Line / Batteries (any type) / 220 / 9 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch
Power out 0.35 W (unknown quality)
from Radiomuseum.org Model: National TR-525ES - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 333 x 148 x 280 mm / 13.1 x 5.8 x 11 inch

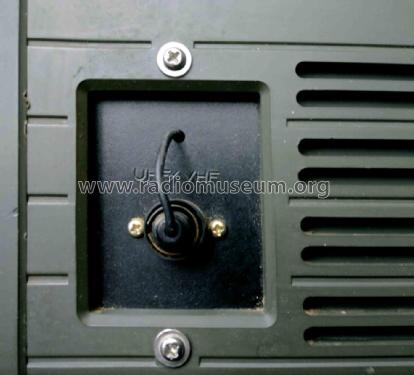

Notes Portable 5" b/w TV, VHF and UHF tuner. External 12-V-power supply possible.

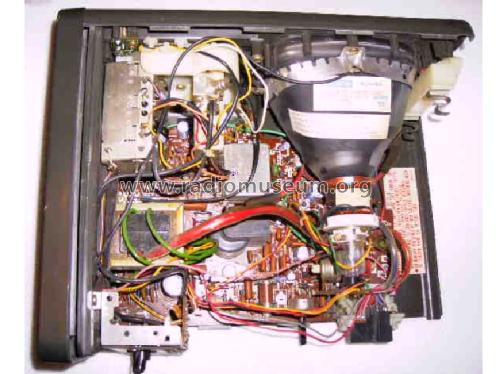

1 IC, 26 Transistors, 19 Diodes, 1 Thermistor, 1 H.V. Rectifier.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Source of data Handbuch VDRG 1977/1978

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
