National UA-120

National UA-120; Panasonic, (ID = 1362702) Radio
National UA-120; Panasonic, (ID = 1250731) Radio National UA-120; Panasonic, (ID = 1250729) Radio
National UA-120; Panasonic, (ID = 1250727) Radio National UA-120; Panasonic, (ID = 1250733) Radio
National UA-120; Panasonic, (ID = 1250742) Radio National UA-120; Panasonic, (ID = 1250745) Radio
National UA-120; Panasonic, (ID = 1250728) Radio National UA-120; Panasonic, (ID = 1250827) Radio
Use red slider bar for more.
National UA-120; Panasonic, (ID = 1250731) Radio
Panasonic,: National UA-120 [Radio] ID = 1250731 930x901
Select picture or schematic to display from thumbnails on the right and click for download.
For model National UA-120, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DF96 DK96 DF96 DAF96 DL97 or 3Y4
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / AC/DC 100; 110 / 1.4 & 67.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: National UA-120 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 255 x 168 x 59 mm / 10 x 6.6 x 2.3 inch

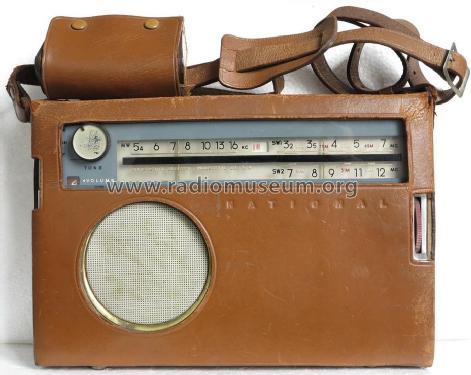

Notes National UA-120 is a 5-Tube AC/DC/Battery operated 3-Band Portable Radio Receiver.
SW 1: 3.2...7 MHz
SW 2: 7...12 MHz
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Price in first year of sale 17'355.00 Yen

Model page created by Taili ZHANG. See "Data change" for further contributors.
