• Year
  • 2000
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 274543

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 1 x 9 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

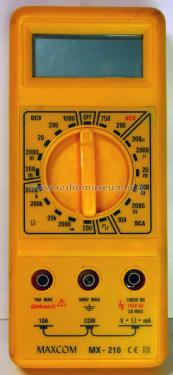

  • Model: DMM MX-210 - Maxcom Co.; Gyeonggi-do
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 66 x 151 x 30 mm / 2.6 x 5.9 x 1.2 inch
  • Notes
  • Multimètre digital (3½ digit) permettant la mesure des tensions continues de 0.2V à 1KV en 5 gammes, des tensions alternatives en 2 gammes 200V et 750V, des intensités continues 200µA à 10A  en 6 gammes et des résistances en 5 gammes de 200Ω à 2MΩ. La position 2KΩ permet de contrôle des semiconducteurs.

    Possède un générateur de signal carré BF.

    Utilise un circuit intégré HY7106.

  • Net weight (2.2 lb = 1 kg)
  • 0.188 kg / 0 lb 6.6 oz (0.414 lb)
  • Author
  • Model page created by Jean Marchal. See "Data change" for further contributors.
