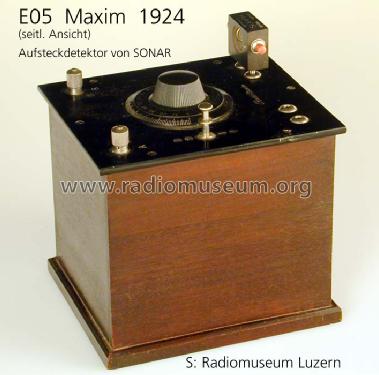

Detektor-Empfänger E05 Umschaltstift

Maxim; Aarau

  • Year
  • 1924/1925
  • Category
  • Detector-Radio (Crystal or diode, without tubes/transistors)
  • Radiomuseum.org ID
  • 19059

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Detektor-Empfänger E05 [Umschaltstift] - Maxim; Aarau
  • Notes
  • Variometer - siehe auch Einfachausführung.
  • Price in first year of sale
  • 58.00 SFr
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
