• Country
• Switzerland

• Manufacturer / Brand
• Maxim; Aarau

• Year
• 1925/1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 12261

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• A410 A410

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 Special; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

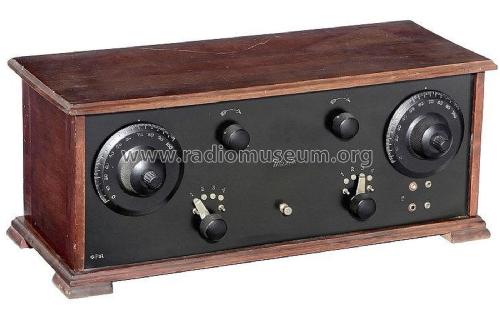

• Model: Standard E32 - Maxim; Aarau

• Dimensions (WHD)
• 510 x 210 x 210 mm / 20.1 x 8.3 x 8.3 inch

• Notes
• Variometer, 4 Wellenbereiche

• Price in first year of sale
• 295.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Radios von gestern, 1. Auflage

• Picture reference

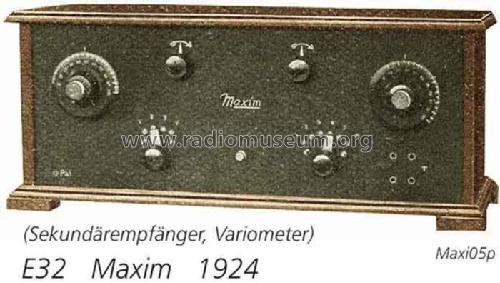

• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
