• Country
• Germany

• Manufacturer / Brand
• Maximal (Marke? / brand?)

• Year
• 1988/1989

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 195503

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

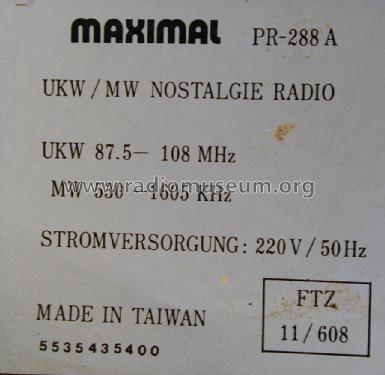

• Model: UKW/MW Nostalgieradio PR-288A - Maximal Marke? / brand?

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 275 x 380 x 153 mm / 10.8 x 15 x 6 inch

• Notes
• Maximal Holz Replica Radio Modell PR-288A , hell/dunkelbraun mit schwarzen Inlays . Made in Taiwan

• Net weight (2.2 lb = 1 kg)
• 2.890 kg / 6 lb 5.9 oz (6.366 lb)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
