• Country
• Germany

• Manufacturer / Brand
• Maximal (Marke? / brand?)

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 188287

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• CS9016 CS9016 CS9013 ULN2204 LM8560

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

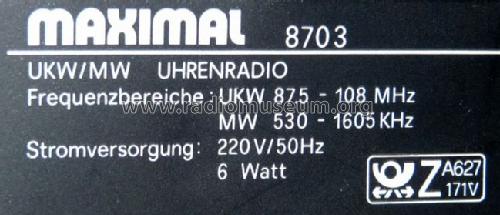

• Model: UKW / MW-Uhrenradio 8703 - Maximal Marke? / brand?

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 245 x 63 x 140 mm / 9.6 x 2.5 x 5.5 inch

• Notes
• Wellenbereiche: UKW 87,5...108 MHz: MW 530...1600 kHz. Transistoren: 2 x 9016F/G, 1 x 9013H. LIN-IC: 1 x ULN 2204A-22, 1 x LM 8560. Zur Uhrzeiterhaltung bei Stromausfall ist eine Speicherbatterie (9Volt) erforderlich.

• Net weight (2.2 lb = 1 kg)
• 0.750 kg / 1 lb 10.4 oz (1.652 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
