Campanela MW 213

Campanela MW 213; Maxwell; Santiago de (ID = 2066064) Radio Campanela MW 213; Maxwell; Santiago de (ID = 2066065) Radio

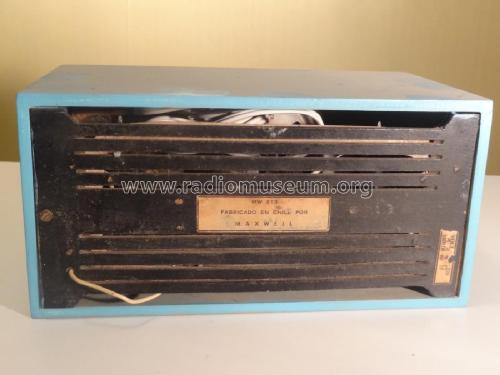

Campanela MW 213; Maxwell; Santiago de (ID = 2066067) Radio
Use red slider bar for more.
Campanela MW 213; Maxwell; Santiago de (ID = 2066064) Radio
Maxwell; Santiago de: Campanela MW 213 [Radio] ID = 2066064 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Campanela MW 213, Maxwell; Santiago de Chile:
Frente

Country:  Chile
Manufacturer / Brand:  Maxwell; Santiago de Chile
Year: 1962 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Campanela MW 213 - Maxwell; Santiago de Chile
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 250 x 122 x 147 mm / 9.8 x 4.8 x 5.8 inch
Notes

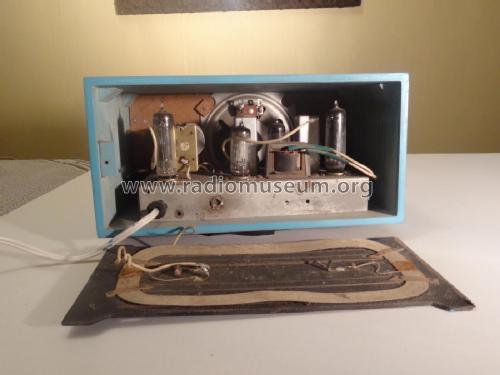

Built-in loop antenna.

Model page created by Maximiliano Herrada. See "Data change" for further contributors.
