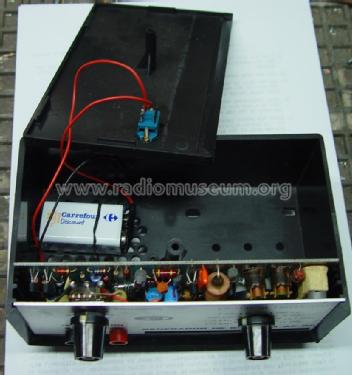

Generador de Señales AF BF
Maymo, Escuela Radio; Barcelona etc.
- Country
- Spain
- Manufacturer / Brand
- Maymo, Escuela Radio; Barcelona etc.
- Year
- 1990 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 268400
-
- alternative name: ERMSA
- Number of Transistors
- 6
- Semiconductors
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Generador de Señales AF BF - Maymo, Escuela Radio;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 163 x 82 x 100 mm / 6.4 x 3.2 x 3.9 inch
- Notes
-
Generador de RF modulada en AM, con frecuencias fijas:
470 - 520 - 600 -1400 - 1600 kHz y 6 -10,7 -16 MHz.Signal Generator with 8 fixed frequencies for alignment purposes.
Internal AM modulation generator,
- Net weight (2.2 lb = 1 kg)
- 0.2 kg / 0 lb 7 oz (0.441 lb)
- Author
- Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
