Tube Tester and Tester ; Maymo, Escuela Radio (ID = 2340050) Equipment
Maymo, Escuela Radio: Tube Tester and Tester [Equipment] ID = 2340050 1200x900
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tube Tester and Tester, Maymo, Escuela Radio; Barcelona etc.

Country:  Spain
Manufacturer / Brand:  Maymo, Escuela Radio; Barcelona etc.
alternative name

ERMSA
Year: 1947 ? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Tube Tester and Tester - Maymo, Escuela Radio;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 330 x 100 x 210 mm / 13 x 3.9 x 8.3 inch
Notes Provavalvole (comprobador de làmparas) più tester.

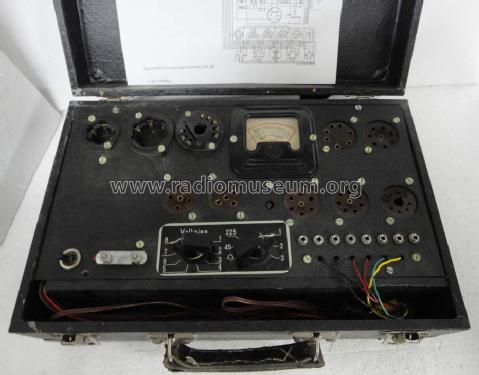

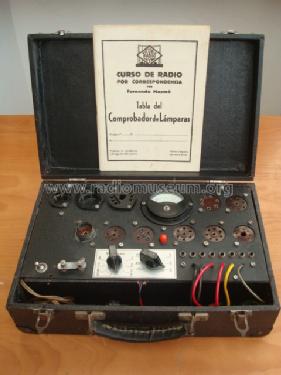

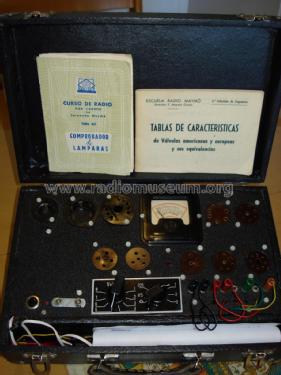

Lo strumento ha 10 zoccoli. bicchiere, bicchiere piccolo,tedesco a 8 piedini, 4, 5 , 6 ,vari a 7 piedini americano ed un octal. Il tester permette oltre il controllo di emissione della valvola anche misure solo in dc 0-4,5, 0-225 volt, 0-10 mA, 0-10000 ohm.
The instrument has 10 sockets: European side contact side, small contact side, 8 pins German, 4, 5, 6, 7 pins American and an octal. The tester can check emission of the valve and can measure (DC only) ranges: 0-4,5, 0-225 volt, 0-10 mA, 0-10000 ohm.
Mentioned in -- Original prospect or advert

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
