Electronic Multimeter BEM-015

Electronic Multimeter BEM-015; MBLE, Manufacture (ID = 2333939) Equipment
Electronic Multimeter BEM-015; MBLE, Manufacture (ID = 1239813) Equipment Electronic Multimeter BEM-015; MBLE, Manufacture (ID = 1239814) Equipment
Electronic Multimeter BEM-015; MBLE, Manufacture (ID = 1239815) Equipment Electronic Multimeter BEM-015; MBLE, Manufacture (ID = 1239816) Equipment
Electronic Multimeter BEM-015; MBLE, Manufacture (ID = 1239817) Equipment Electronic Multimeter BEM-015; MBLE, Manufacture (ID = 2333940) Equipment
Use red slider bar for more.
Electronic Multimeter BEM-015; MBLE, Manufacture (ID = 1239813) Equipment

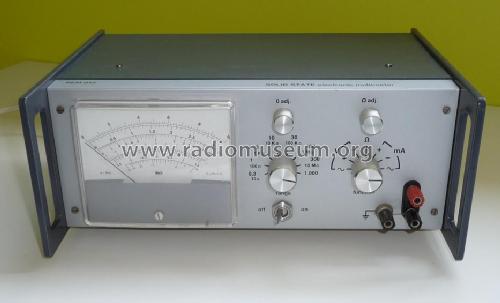

MBLE, Manufacture: Electronic Multimeter BEM-015 [Equipment] ID = 1239813 933x567
Select picture or schematic to display from thumbnails on the right and click for download.
For model Electronic Multimeter BEM-015, MBLE, Manufacture Belge ... - see also MAZDA and ADZAM

Country:  Belgium
Manufacturer / Brand:  MBLE, Manufacture Belge ... - see also MAZDA and ADZAM
Year: 1973 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 115; 230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Electronic Multimeter BEM-015 - MBLE, Manufacture Belge ... -
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 297 x 125 x 220 mm / 11.7 x 4.9 x 8.7 inch
Notes Electronic multimeter:
AC & DC Volt: 0,3V to 1000V (imped. 17 MΩ)
AC & DC Ampere: 0.3 mA to 1A.
Ohmmeter: 10Ω, 100Ω, 1kΩ, 10KΩ, 100kΩ, 1MΩ-10MΩ.
Sold as kit.
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 4'170.00 BFr
Collectors' prices

Model page created by Hugo Sneyers. See "Data change" for further contributors.
