• Country
• United States of America (USA)

• Manufacturer / Brand
• McGohan Inc., Don; Chicago, Ill.

• Year
• 1953 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 135161

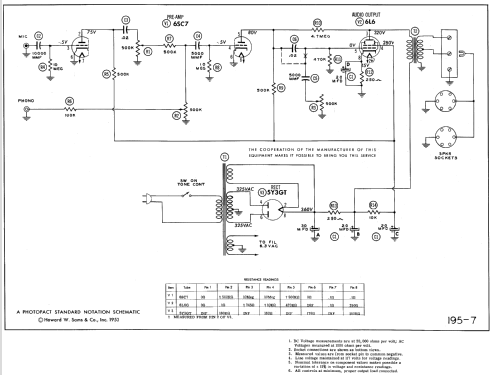

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6SC7 6L6G 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

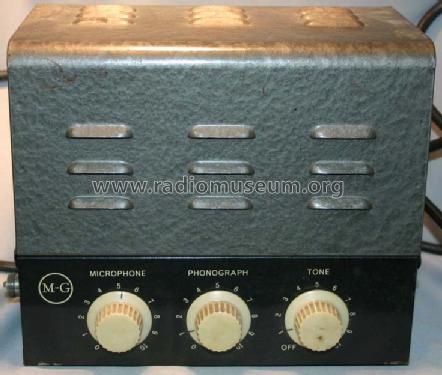

• Model: MG-7 - McGohan Inc., Don; Chicago,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• Don MC Gohan model MG-7 is an AC operated 2 channel audio amplifier.

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 2-53 Set 195, Folder 7)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
