• Year
  • 1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 104412
    • alternative name: McMichael, Leslie

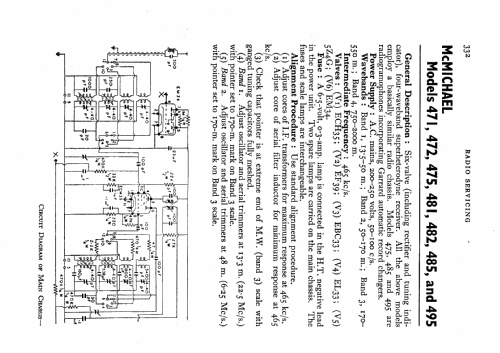

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: 495 - McMichael Radio Ltd.; Slough
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
