• Country
• Great Britain (UK)

• Manufacturer / Brand
• McMichael Radio Ltd.; Slough

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78223

• • alternative name: McMichael, Leslie

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AC/VP1 AC/TP AC/VP1 AC/HLDD AC/Pen

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

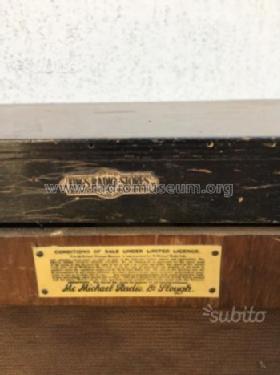

• Model: Superhet Mains Transportable - McMichael Radio Ltd.; Slough

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 15 x 20 x 10 inch / 381 x 508 x 254 mm

• Notes
• Internal frame aerial; turntable to adjust direction. Not a real Portable!

• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• Broadcaster Service Engineer Supplement

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
