• Country
• United States of America (USA)

• Manufacturer / Brand
• McMillan Radio Corp.; Chicago, Illinois

• Year
• 1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 46882

• Number of Tubes
• 5

• Valves / Tubes
• UX201A UX201A UX201A UX201A UX201A

• Main principle
• TRF without regeneration; 2 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

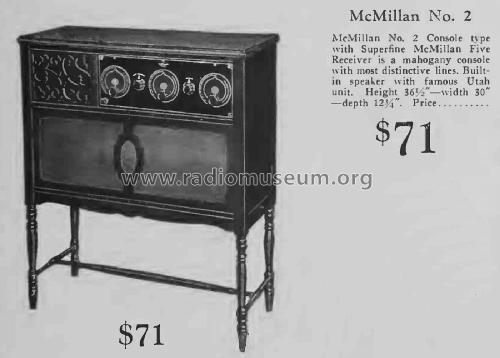

• Model: Superfine McMillan Five No. 2 - McMillan Radio Corp.; Chicago,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 30 x 36.5 x 12.75 inch / 762 x 927 x 324 mm

• Notes

• Three dials (primary tuning control knobs). Uses the McMillan 5 chassis.

  Speaker incorporated with Utah driver.

• Price in first year of sale
• 71.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• Sept. 15, 1926 The Talking Machine World magazine page 66k

• Other Models

• Here you find 33 models, 14 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from McMillan Radio Corp.; Chicago, Illinois
