Megacycle Meter 59 (grid dip)

Measurements Corporation, Boonton NJ

  • Year
  • 1947–1955
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 116139

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Megacycle Meter 59 - Measurements Corporation,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

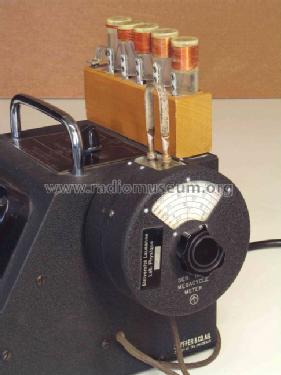

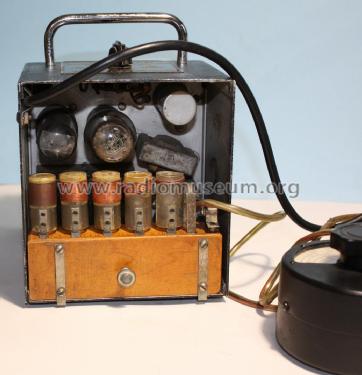

  • The model 59 was a grid dip meter covering from 2.2 to 400 MHz. The equipment included one power unit and one oscillator unit. With oscillator head Model 59 (shown on both images), selecting one of the 7 coils, the range is 2 MHz to 420 MHz. With oscillator head Model 59-UHF (see corresponding model), the range is 420 to 940 MHz.
  • Net weight (2.2 lb = 1 kg)
  • 3.7 kg / 8 lb 2.4 oz (8.15 lb)
  • Mentioned in
  • The radio electronic master 1956
  • Author
  • Model page created by Emilio Ciardiello. See "Data change" for further contributors.
