Communication Receiver ML-213; Mechanikai (ID = 2009586) Radio

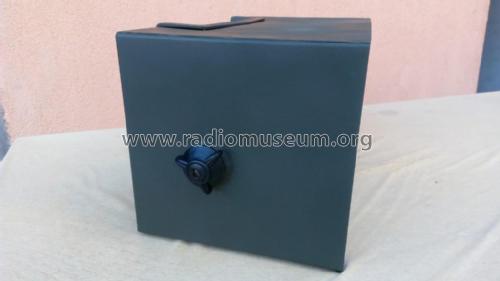

Mechanikai: Communication Receiver ML-213 [Radio] ID = 2009586 1024x576

Select picture or schematic to display from thumbnails on the right and click for download.

For model Communication Receiver ML-213, Mechanikai Laboratórium (ML); Budapest

Country:

Hungary

Manufacturer / Brand:

Mechanikai Laboratórium (ML); Budapest

Year: 1948–1954

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

10: 6BA6 6BE6 6BA6 6BA6 6BE6 6BA6 6AT6 6BA6 6AQ5 EZ2/3

Main principle	Superheterodyne (common); ZF/IF 1420 kHz; 4 AF stage(s)
Wave bands	Short Wave (SW only)
Details
Power type and voltage	Line / Batteries (any type) / 110; 150; 200; 220; 240 / ? Volt
Loudspeaker	- For headphones or amp.
Power out
from Radiomuseum.org	Model: Communication Receiver ML-213 - Mechanikai Laboratórium ML;
Material	Metal case
Shape	Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD)	480 x 240 x 250 mm / 18.9 x 9.4 x 9.8 inch
Net weight (2.2 lb = 1 kg)	17 kg / 37 lb 7.1 oz (37.445 lb)
Literature/Schematics (1)	Dékány-Szönyi: A magyar katonai rádiófelderítés története.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.

All listed radios etc. from Mechanikai Laboratórium (ML); Budapest
Here you find 160 models, 136 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Mihály Horn (H)
