• Country
• United States of America (USA)

• Manufacturer / Brand
• Meck, John, Industries, Inc.; Plymouth (IN)

• Year
• 1946 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138878

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

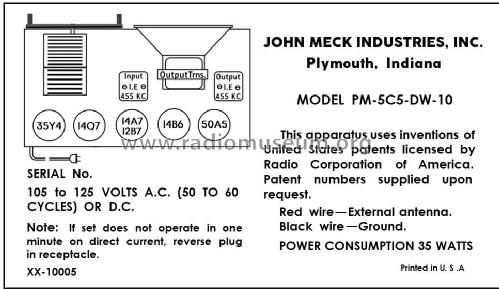

• 14Q7 14A7/12B7 14B6 50A5 35Y4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.94 inch = 10 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: PM-5C5-DW-10 Trail Blazer [Loctal tubes] - Meck, John, Industries, Inc.;

• Shape
• Tablemodel, with any shape - general.

• Notes
• Sams photofact set 2 folder 462-4 date 7-46 features the Meck model PM-5C5-DW10 two variants as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 2 folder 462-4 date 7-46)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
