M46A (46A)

M46A ; Mediator; La Chaux- (ID = 2031607) Radio

M46A ; Mediator; La Chaux- (ID = 2031608) Radio
M46A ; Mediator; La Chaux- (ID = 1606648) Radio M46A ; Mediator; La Chaux- (ID = 1941) Radio
M46A ; Mediator; La Chaux- (ID = 244154) Radio M46A ; Mediator; La Chaux- (ID = 1606647) Radio
M46A ; Mediator; La Chaux- (ID = 1606649) Radio M46A ; Mediator; La Chaux- (ID = 1606650) Radio
M46A ; Mediator; La Chaux- (ID = 1606651) Radio
Use red slider bar for more.
M46A ; Mediator; La Chaux- (ID = 1606648) Radio

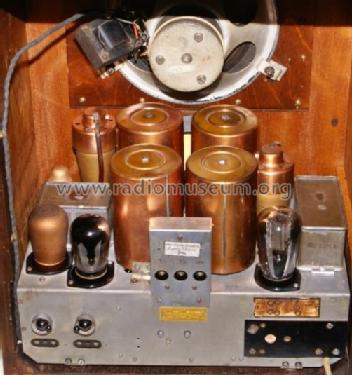

Mediator; La Chaux-: M46A [Radio] ID = 1606648 440x563
Select picture or schematic to display from thumbnails on the right and click for download.
For model M46A (46A), Mediator; La Chaux-de-Fonds

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: E452T E452T E424N E424N C443 506
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: M46A - Mediator; La Chaux-de-Fonds
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 420 x 575 x 290 mm / 16.5 x 22.6 x 11.4 inch
Notes

4fach Drehko.
Same chassis as Philips 630A.

Net weight (2.2 lb = 1 kg) 19.5 kg / 42 lb 15.2 oz (42.952 lb)
Price in first year of sale 560.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
