M49A (49A)

M49A ; Mediator; La Chaux- (ID = 2023865) Radio
M49A ; Mediator; La Chaux- (ID = 330024) Radio M49A ; Mediator; La Chaux- (ID = 330038) Radio
M49A ; Mediator; La Chaux- (ID = 332822) Radio M49A ; Mediator; La Chaux- (ID = 781768) Radio
M49A ; Mediator; La Chaux- (ID = 781769) Radio M49A ; Mediator; La Chaux- (ID = 781770) Radio
M49A ; Mediator; La Chaux- (ID = 781772) Radio M49A ; Mediator; La Chaux- (ID = 781773) Radio
Use red slider bar for more.
M49A ; Mediator; La Chaux- (ID = 330024) Radio
Mediator; La Chaux-: M49A [Radio] ID = 330024 800x599

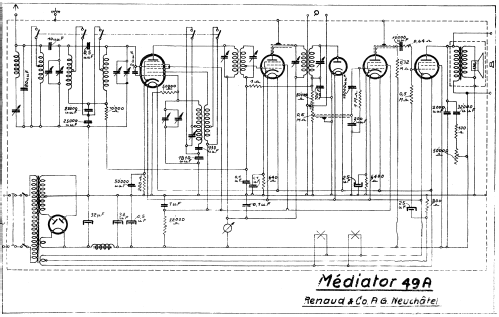

Select picture or schematic to display from thumbnails on the right and click for download.
For model M49A (49A), Mediator; La Chaux-de-Fonds

Country:  Switzerland
Manufacturer / Brand:  Mediator; La Chaux-de-Fonds
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: AK1 AF2 AB1 E446 E443H 506
Main principle Super-Heterodyne (Super in general); ZF/IF 115 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: M49A - Mediator; La Chaux-de-Fonds
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 450 x 400 x 240 mm / 17.7 x 15.7 x 9.4 inch

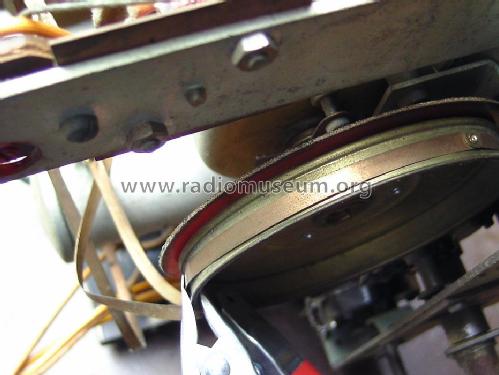

Notes "Skalenseil" ist ein ca. 5mm breites Bronzeband. Feldstärkeanzeige.
Net weight (2.2 lb = 1 kg) 23.5 kg / 51 lb 12.2 oz (51.762 lb)
Price in first year of sale 350.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.


All listed radios etc. from Mediator; La Chaux-de-Fonds
Here you find 347 models, 296 with images and 220 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
