• Country
• United States of America (USA)

• Manufacturer / Brand
• Meissner Mfg. Div., Maguire Industries, Inc. (IL)

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 266800

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6L7 6K7 6J7 6K7 6J7 6L7 6H6 6R7 6C5 6K7 6H6 6L6 6L6 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: 14-Tube Communications Receiver 14-5 - Meissner Mfg. Div., Maguire

• Shape
• Chassis only or for «building in»

• Notes

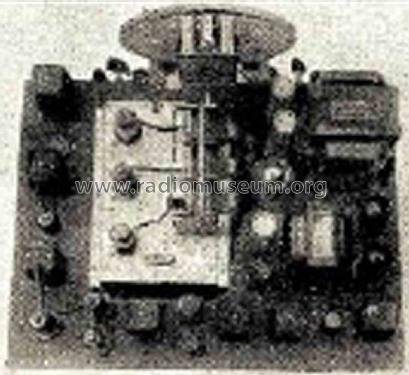

• Meissner 14-Tube Communications Receiver.  Covers 550 to 60,000 kHz in five bands. 8-inch dial. Was available as a kit, but the tuning unit was factory wired and aligned. Chassis was finished in black crackle paint.

• Price in first year of sale
• 53.50 USD

• Mentioned in
• Radio News (November 1937 pgs 270-271 and 292.)

• Literature/Schematics (1)
• Communications Receivers (4th edition page 84)

• Author
• Model page created by Wayne Childress. See "Data change" for further contributors.
