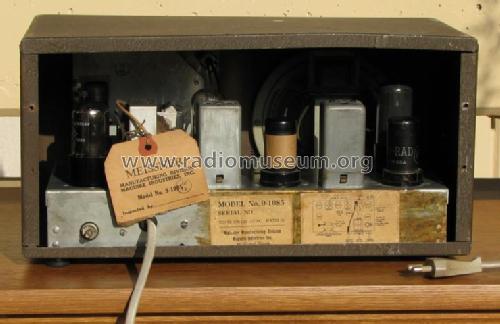

9-1085 9=1085; Meissner Mfg. Div., (ID = 1708780) Radio
Meissner Mfg. Div.,: 9-1085 9=1085 [Radio] ID = 1708780 816x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 9-1085 9=1085 var 2, Meissner Mfg. Div., Maguire Industries, Inc. (IL):
Glas vor Skala fehlt, sonst Originalnzustand

Country:  United States of America (USA)
Manufacturer / Brand:  Meissner Mfg. Div., Maguire Industries, Inc. (IL)
Year: 1946 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12SA7 12SK7 12SQ7 35L6 35Z5
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110 -125 Volt Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 9-1085 9=1085 [var 2] - Meissner Mfg. Div., Maguire
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 345 x 177 x 200 mm / 13.6 x 7 x 7.9 inch
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Collectors' prices

Model page created by Markus Philipp. See "Data change" for further contributors.
