- Country
- United States of America (USA)
- Manufacturer / Brand
- Meissner Mfg. Div., Maguire Industries, Inc. (IL)
- Year
- 1954 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 46984

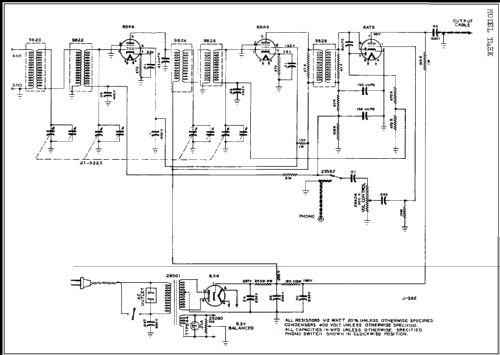

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with diode detector
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org
- Model: T4EK 4E - Meissner Mfg. Div., Maguire
- Notes
- Chassis 4E is an Bandpass Tuner designed for superior High Fidelity broadcast reception.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 22, covering 1951
