M.R. 101

M.R. 101; Mengel Company Inc., (ID = 634766) Crystal M.R. 101; Mengel Company Inc., (ID = 616186) Crystal
M.R. 101; Mengel Company Inc., (ID = 1344466) Crystal M.R. 101; Mengel Company Inc., (ID = 1443349) Crystal
M.R. 101; Mengel Company Inc., (ID = 1443350) Crystal M.R. 101; Mengel Company Inc., (ID = 1443351) Crystal
M.R. 101; Mengel Company Inc., (ID = 1443352) Crystal M.R. 101; Mengel Company Inc., (ID = 1443353) Crystal
M.R. 101; Mengel Company Inc., (ID = 1443354) Crystal M.R. 101; Mengel Company Inc., (ID = 1443355) Crystal
Use red slider bar for more.
M.R. 101; Mengel Company Inc., (ID = 634766) Crystal
Mengel Company Inc.,: M.R. 101 [Crystal] ID = 634766 742x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model M.R. 101, Mengel Company Inc., The; Louisville (KY)

Country:  United States of America (USA)
Manufacturer / Brand:  Mengel Company Inc., The; Louisville (KY)
Year: 1924 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: M.R. 101 - Mengel Company Inc., The;

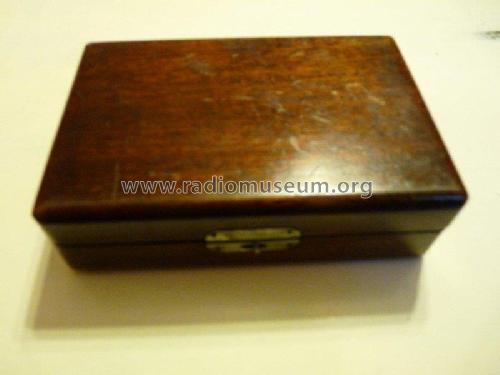

Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 5.8 x 1.6 x 3.8 inch / 147 x 41 x 97 mm

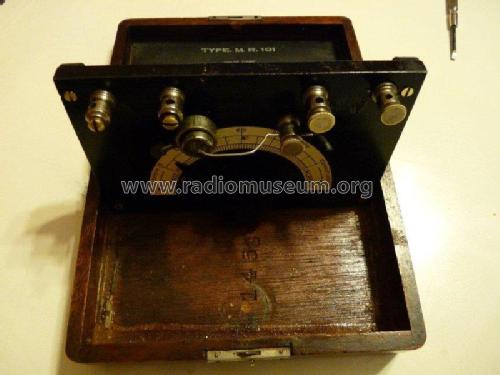

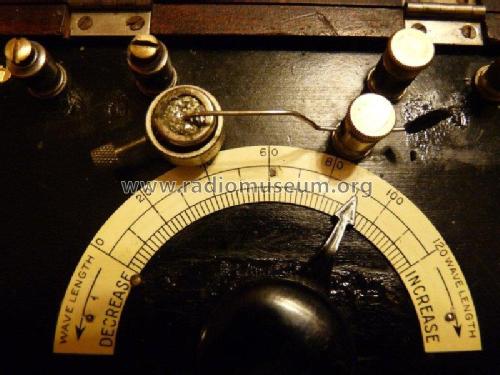

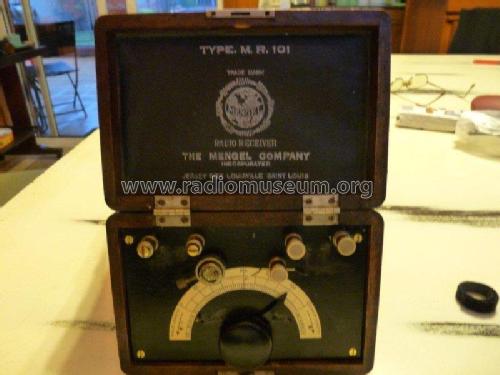

Notes The Mengel Company Inc., M.R. 101 Radio Receiver; Semi-cycle scale, two screw terminals for antenna and earth, two screw terminals for phones. Similar to Shamrock Radiophone "Crystal" Model A and United Diamond.
Price in first year of sale 4.00 $
Collectors' prices
Source of data -- Collector info (Sammler)
Mentioned in Crystal Clear (Volume 1)
Literature/Schematics (1) Crystal Clear Volume 2

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Mengel Company Inc., The; Louisville (KY)
Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
