• Year
  • 1987 ??
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 191746

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 5 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

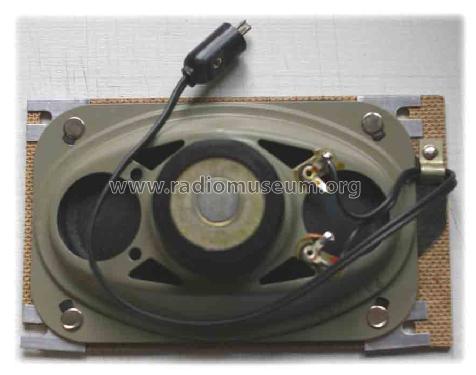

  • Model: Lautsprechereinheit 8216.116 - Meßapparatewerk Schlotheim /Th
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 110 x 50 mm / 7.1 x 4.3 x 2 inch
  • Notes
  • Ovallautsprecher L6061, 5 VA, 4 Ohm, 89 dB, 250 Hz bis 12,5 kHz.
    vorgesehen für den Einbau in den PKW Wartburg 353/353W.
  • Net weight (2.2 lb = 1 kg)
  • 0.320 kg / 0 lb 11.3 oz (0.705 lb)
  • Price in first year of sale
  • 40.00 DM
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Uwe Ronneberger. See "Data change" for further contributors.
