Meßapparatewerk: Technische Dekaden-Widerstände [Equipment] ID = 727939 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1958 ?? | Category: Service- or Lab Equipment |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Technische Dekaden-Widerstände - Meßapparatewerk Schlotheim /Th |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel, with any shape - general. |
| Dimensions (WHD) | 75 x 85 x 112 mm / 3 x 3.3 x 4.4 inch |

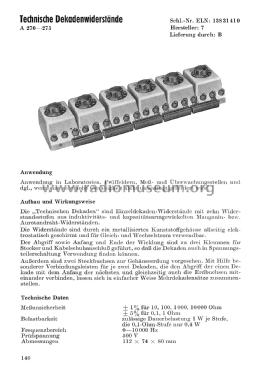

| Notes | Satz Technische Dekadenwiderstände, bestehend aus 6 Dekaden: je 10x 0,1 Ohm, 1 Ohm, 10 Ohm, 100 Ohm, 1000 Ohm, 10.000 Ohm. Gehäuse ursprünglich aus Metall mit Hammerschlaglack-Oberfläche, Ende der 60er Jahre erfolgte Umstellung auf Kunststoffgehäuse. |
| Net weight (2.2 lb = 1 kg) | 3.4 kg / 7 lb 7.8 oz (7.489 lb) |
| Source of data | - - Data from my own collection |
Model page created by Wolfgang Lill. See "Data change" for further contributors.
