UNI-9

UNI-9 ; Messtechnik (ID = 74761) Equipment UNI-9 ; Messtechnik (ID = 310600) Equipment
UNI-9 ; Messtechnik (ID = 1836384) Equipment UNI-9 ; Messtechnik (ID = 2070639) Equipment
Use red slider bar for more.
UNI-9 ; Messtechnik (ID = 74761) Equipment

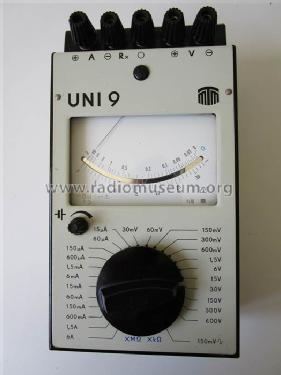

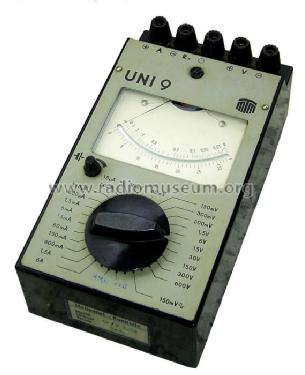

Messtechnik: UNI-9 [Equipment] ID = 74761 570x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model UNI-9, Messtechnik Mellenbach ; MTM ; Mellenbach/Thür. VEB; (Ostd.)

Country:  Germany
Manufacturer / Brand:  Messtechnik Mellenbach ; MTM ; Mellenbach/Thür. VEB; (Ostd.)
Year: 1975 ?? Category: Service- or Lab Equipment
Details
Power type and voltage Dry Batteries / 3 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: UNI-9 - Messtechnik Mellenbach ; MTM
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 110 x 100 x 210 mm / 4.3 x 3.9 x 8.3 inch
Notes Hochwertiges Vielfachmeßgerät speziell für Gleichspannung und Gleichstrommessung, sowie Widerstandsmessung - 30 Meßbereiche von 15µA bis 6A und 30mV bis 600V.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
External source of data eigenes Gerät
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Michael Seiffert. See "Data change" for further contributors.



All listed radios etc. from Messtechnik Mellenbach ; MTM ; Mellenbach/Thür. VEB; (Ostd.)
Here you find 31 models, 27 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
