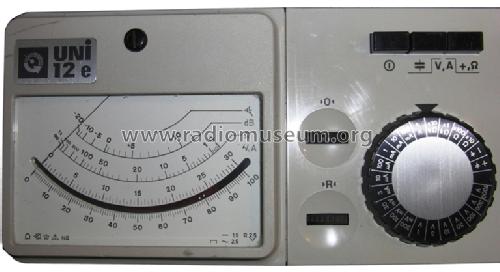

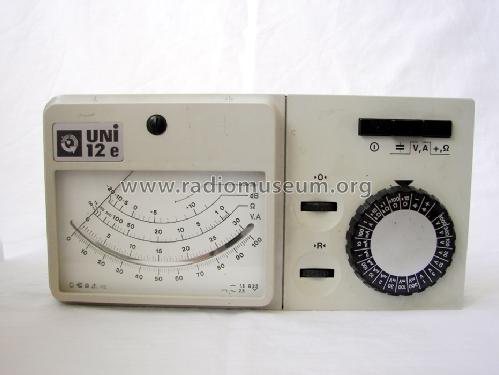

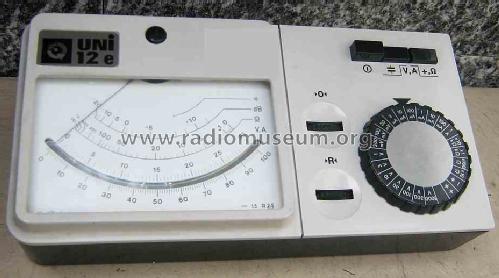

Elektronischer Vielfachmesser UNI12e

• Country
• Germany

• Manufacturer / Brand
• Messtechnik Mellenbach ; MTM ; Mellenbach/Thür. VEB; (Ostd.)

• Year
• 1987 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 82286

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 2× 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Elektronischer Vielfachmesser UNI12e - Messtechnik Mellenbach ; MTM

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 210 x 50 x 110 mm / 8.3 x 2 x 4.3 inch

• Notes
• 1 Doppel-Fet und 1 OPV A109. Nachfolger Uni 11e, Stromversorgung jetzt 1x Mignon und 1x Baby (je 1,5V).

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Price in first year of sale
• 480.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Till Krüger. See "Data change" for further contributors.
