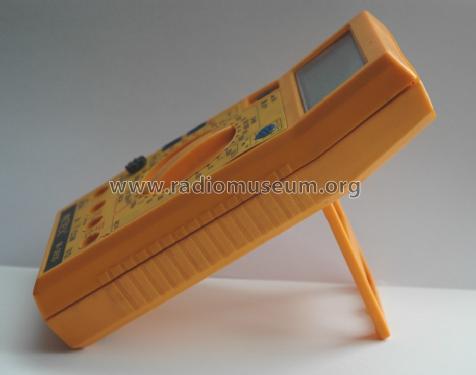

Digital Multimeter M-3650
Metex Corporation, Seoul
- Country
- South Korea
- Manufacturer / Brand
- Metex Corporation, Seoul
- Year
- 1985–1988 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 231413
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 1 × 9 V 6F22 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Digital Multimeter M-3650 - Metex Corporation, Seoul
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 90 x 176 x 43 mm / 3.5 x 6.9 x 1.7 inch
- Notes
-
Messbereiche: Gleichspannung bis 1000 V, Wechselspannung bis 750 V, Widerstand bis 20 MΩ, Gleichstrom bis 20 A, Wechselstrom bis 20 A, Kapazität bis 20 µF, Frequenz bis 200 kHz, Diodentest, Transistortest und Durchgangsprüfer.
- Net weight (2.2 lb = 1 kg)
- 0.390 kg / 0 lb 13.7 oz (0.859 lb)
- Price in first year of sale
- 159.00 DM
- Source of data
- -- Original-techn. papers.
- Literature/Schematics (1)
- Conrad-Katalog 1988, Seite 106
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
